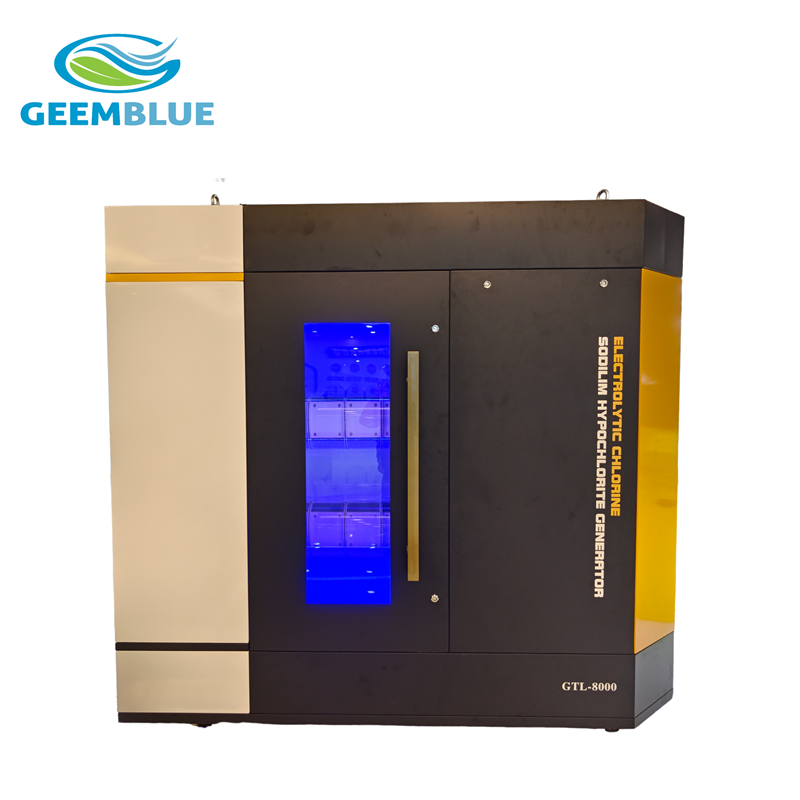

"A" Series Sodium Hypochlorite Generator
PARAMETERS
Chlorine Capacity: 5 ~50kg/h
Water treatment Capacity: 50~500 MLD
Concentration of Chlorine: 8000ppm
Salt consumption: 3.5kg/kg Cl2
Power consumption: 4kw/kg Cl2
Water treatment Capacity: 50~500 MLD
Concentration of Chlorine: 8000ppm
Salt consumption: 3.5kg/kg Cl2
Power consumption: 4kw/kg Cl2
Description
The onsite sodium hypochlorite generator use brine electrolysis to make sodium hypochlorite solution and equipped with automatic dosing device to disinfect water. The design include sodium hypochlorite production, automatic dosing and fully automatic operation. It can be included with remote monitor and control through the Ethernet and communication with host machine. The design of the system is based on energy-saving, fully automation, low operation costs, safety, stability, longevity, fault self-alarm and auto stop, etc.
Specifications
| GBA-5K-NACLO | GBA-10K-NACLO | GBA-20K-NACLO | GBA-30K-NACLO | GBA-50K-NACLO | |
|---|---|---|---|---|---|
| Chlorine Capacity | 5kg/hr | 10kg/hr | 20kg/hr | 30kg/hr | 50kg/hr |
| Water treatment Capacity(At 2ppm dosing) | 50MLD | 100MLD | 200MLD | 300MLD | 500MLD |
| Salt Consumption | 3.5kg/kg Cl2 | 3.5kg/kg Cl2 | 3.5kg/kg Cl2 | 3.5kg/kg Cl2 | 3.5kg/kg Cl2 |
| Power Consumption | 4.0kw/ kg Cl2 | 4.0kw/ kg Cl2 | 4.0kw/ kg Cl2 | 4.0kw/ kg Cl2 | 4.0kw/ kg Cl2 |
| Concentration of HYPO | 8000ppm | 8000ppm | 8000ppm | 8000ppm | 8000ppm |
| Production Flow Rate | 625 L/hr | 1250 L/hr | 2500 L/hr | 3750 L/hr | 6250 L/hr |
Application
1
Municipal water & waste water plants
2
Swimming Pool & water park
3
Food & Beverage Processing
4
Cooling Tower & Recycling
Water treatment
Water treatment
5
Aquiculture poultry farming
Advantage
Easy to get, safe and reliable.
Raw material requires salt, water, and electricity, each kg production of
chlorine, need 3.5kg salt, 105 liter water and 4kWh-AC power.
chlorine, need 3.5kg salt, 105 liter water and 4kWh-AC power.
No dangerous goods transportation.
Chlorine dioxide chemical disinfection, one of the raw material name “Hydrochloric
acid” is dangerous material, which is restricted in the purchase, storage and
transportation. Another disinfection way – chlorine gas, which is known as danger
ous disinfectant also. The on-site electrolytic sodium hypochlorite solution requires
only salt, water and electricity, no dangerous material.
acid” is dangerous material, which is restricted in the purchase, storage and
transportation. Another disinfection way – chlorine gas, which is known as danger
ous disinfectant also. The on-site electrolytic sodium hypochlorite solution requires
only salt, water and electricity, no dangerous material.
System running complete closed, no secondary leakage and pollution.
The whole process of the electrolysis to dosing is completely closed, and no need to
worry about sodium hypochlorite and hydrogen leakage, safe and reliable.
worry about sodium hypochlorite and hydrogen leakage, safe and reliable.
The on-site generation of sodium hypochlorite and dosing immediately,
instead of high strength NaClO solution which is unable to store for long
time;
instead of high strength NaClO solution which is unable to store for long
time;
Full automatic running, only salt feeding regularly
Full computer program, PLC, online chlorine analyser, ensure the residual
chlorine in water and make use of every drop of liquid
chlorine in water and make use of every drop of liquid
Central control, able to remote control, and easy control;
Easy operation, the staff can operate after simple training.
